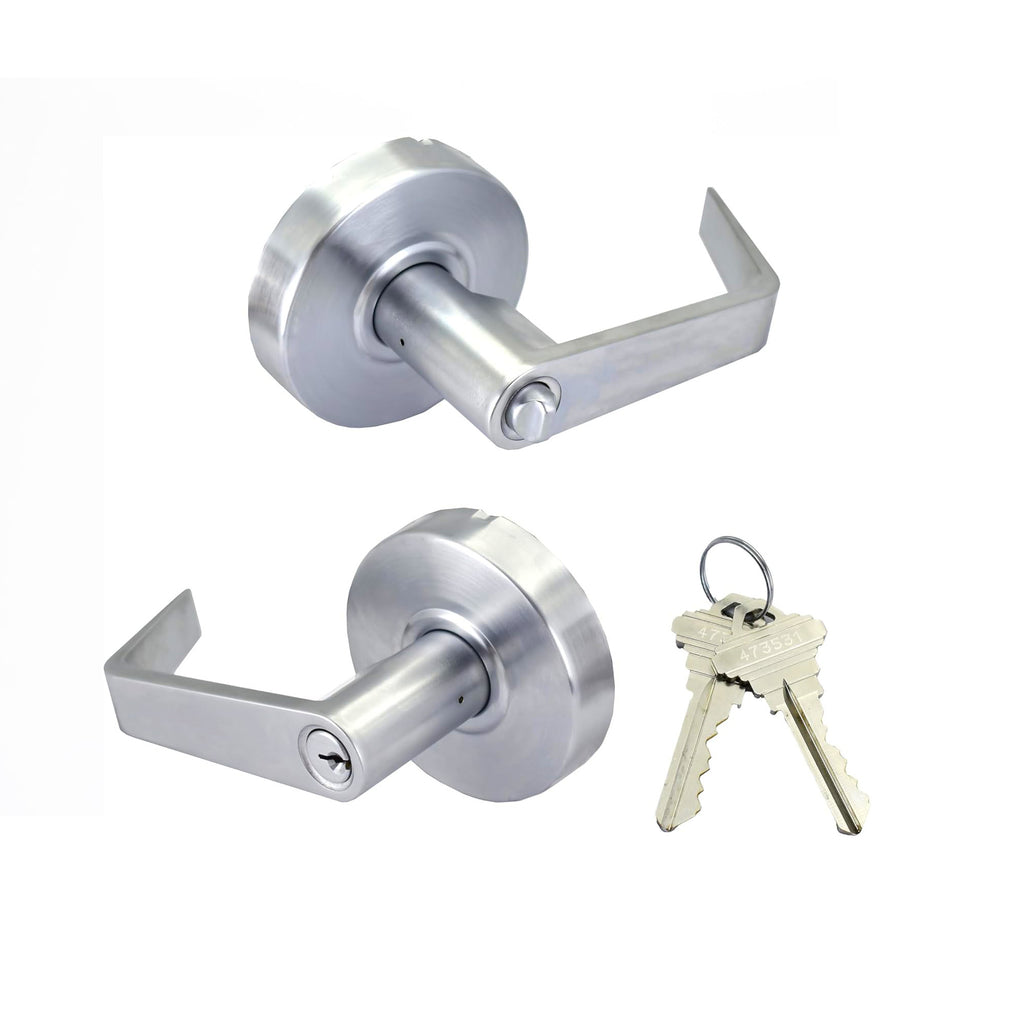

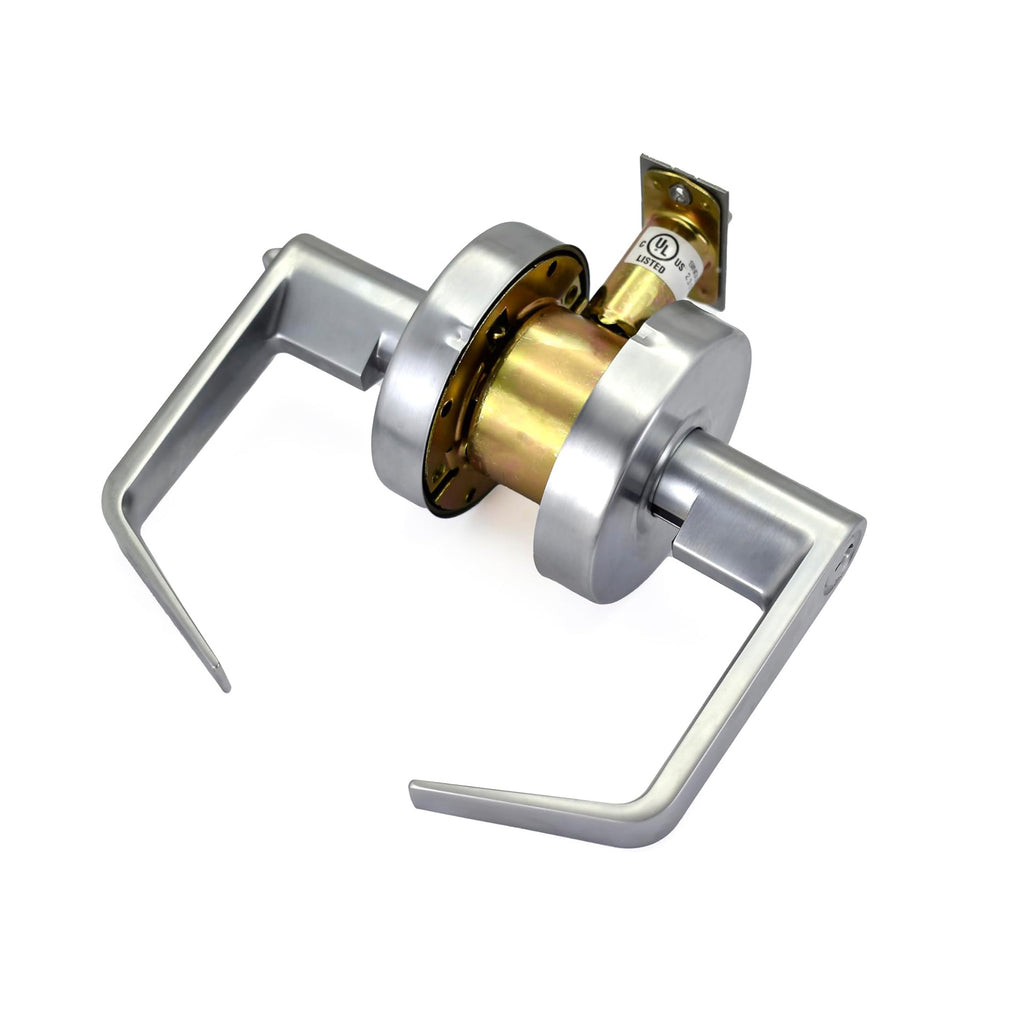

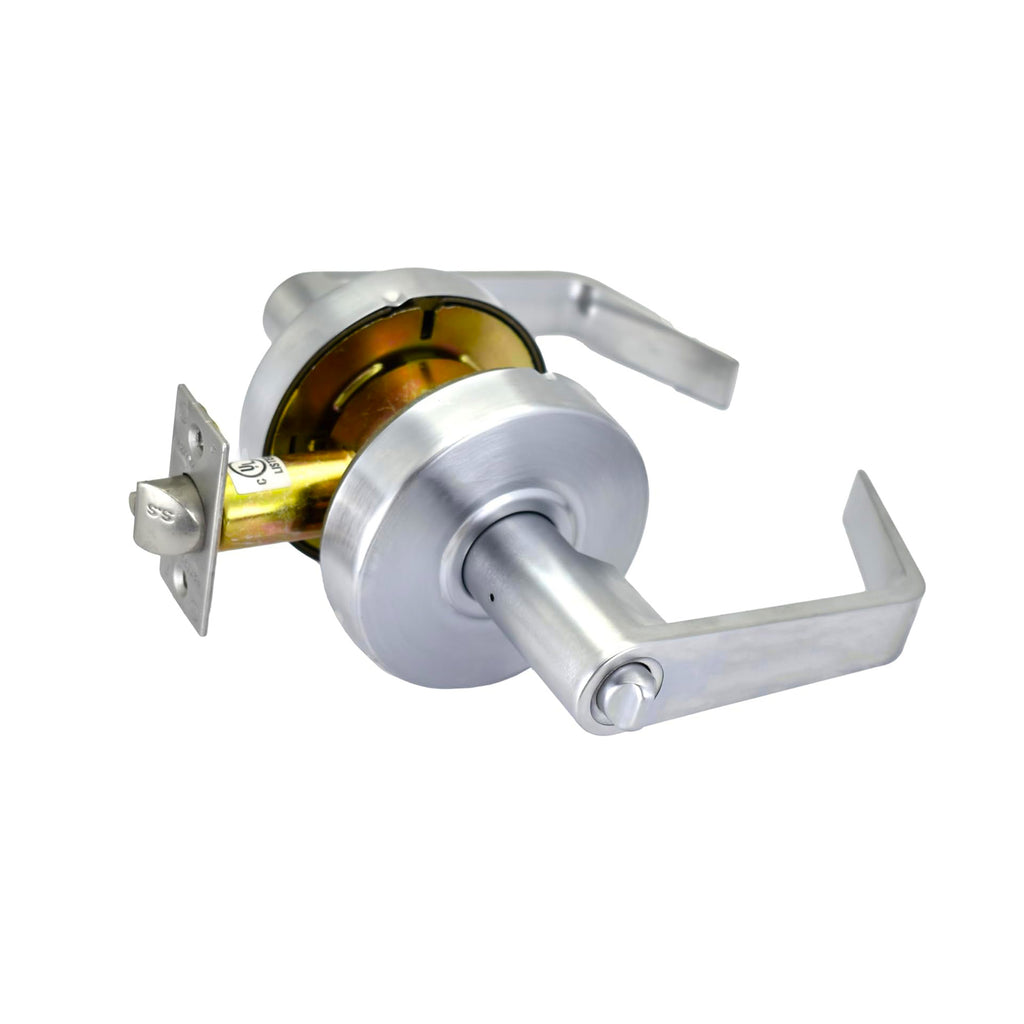

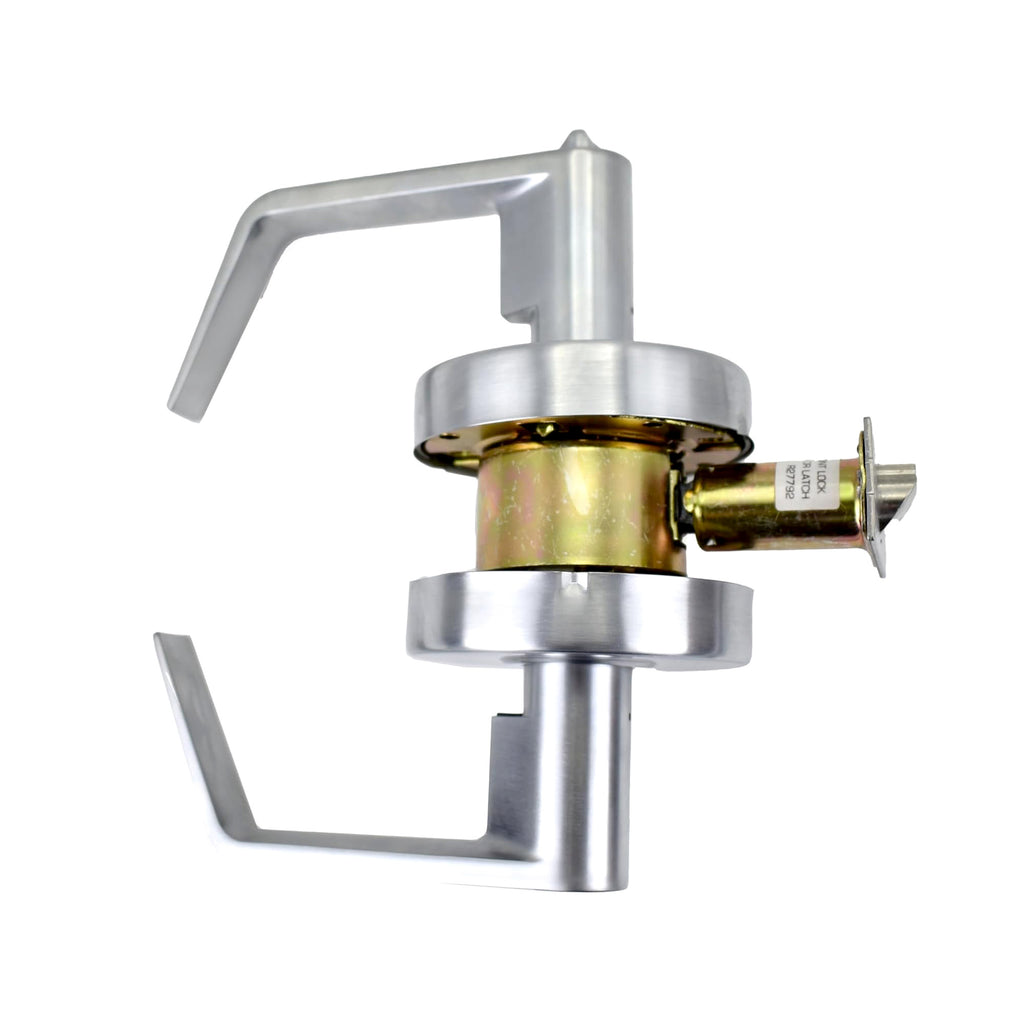

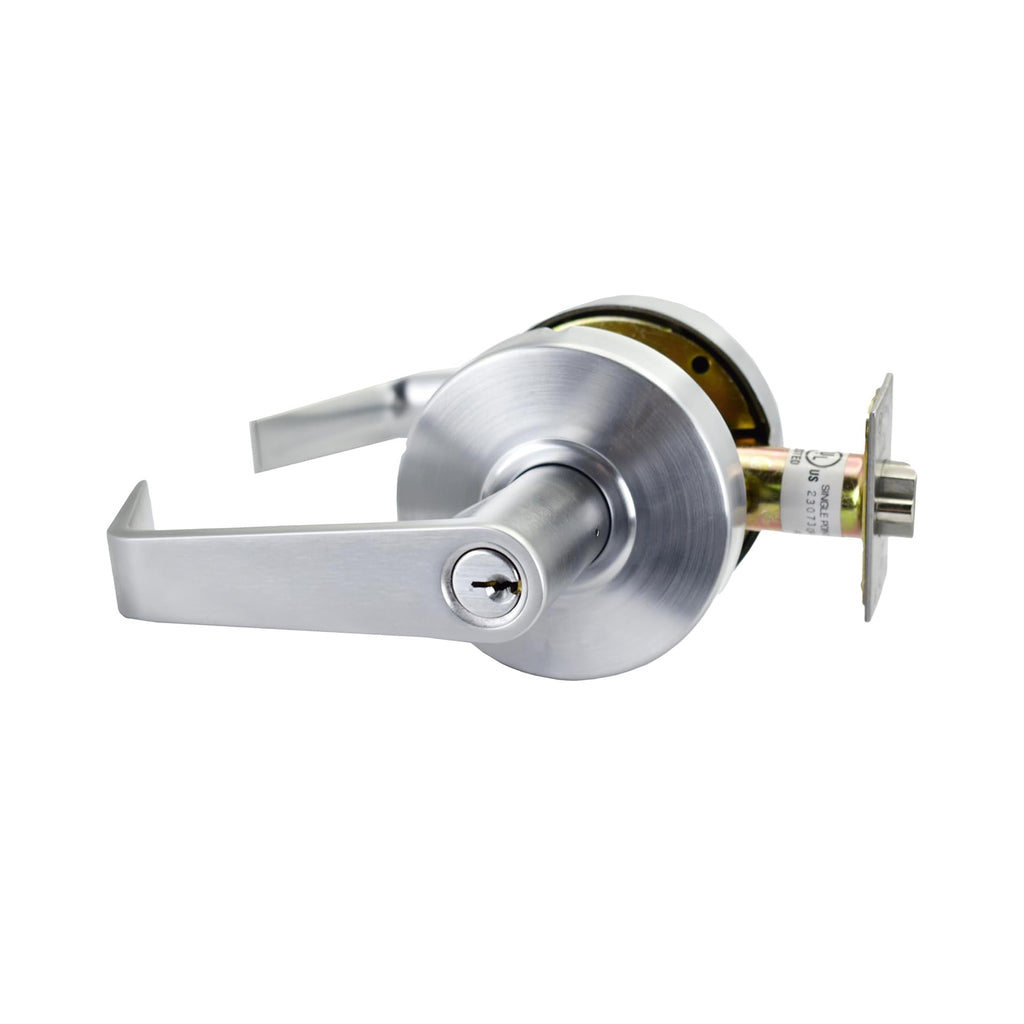

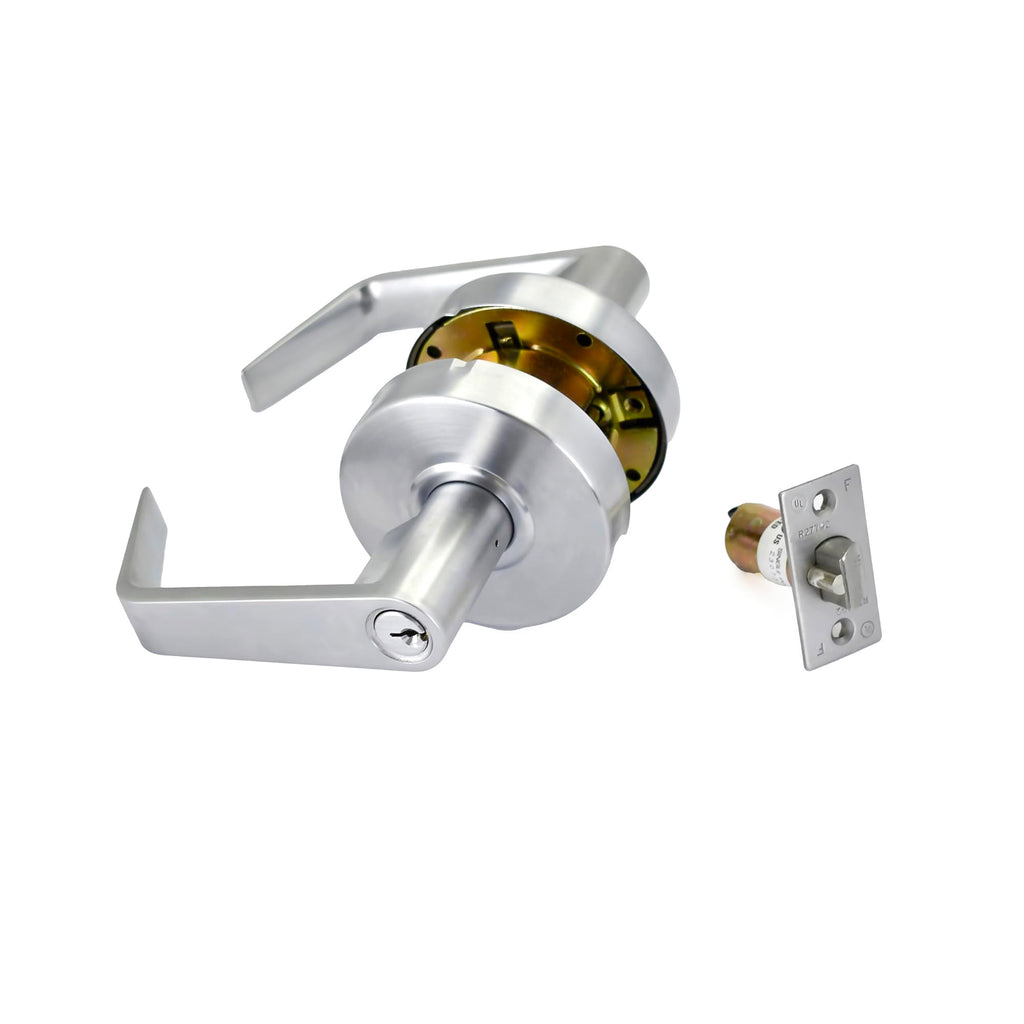

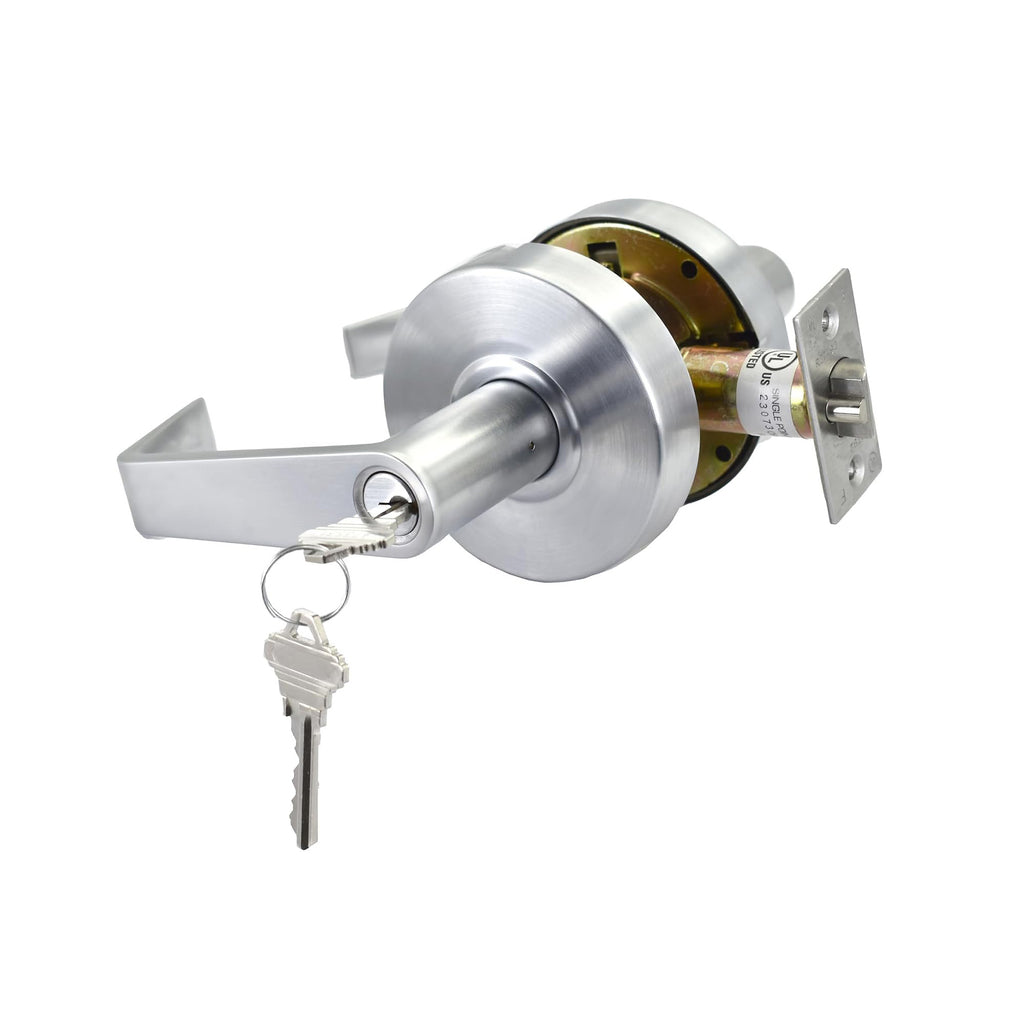

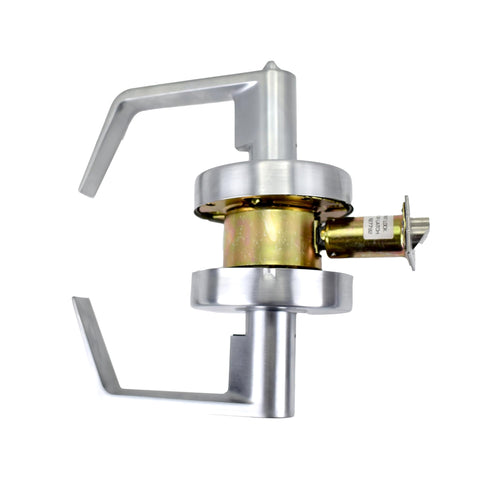

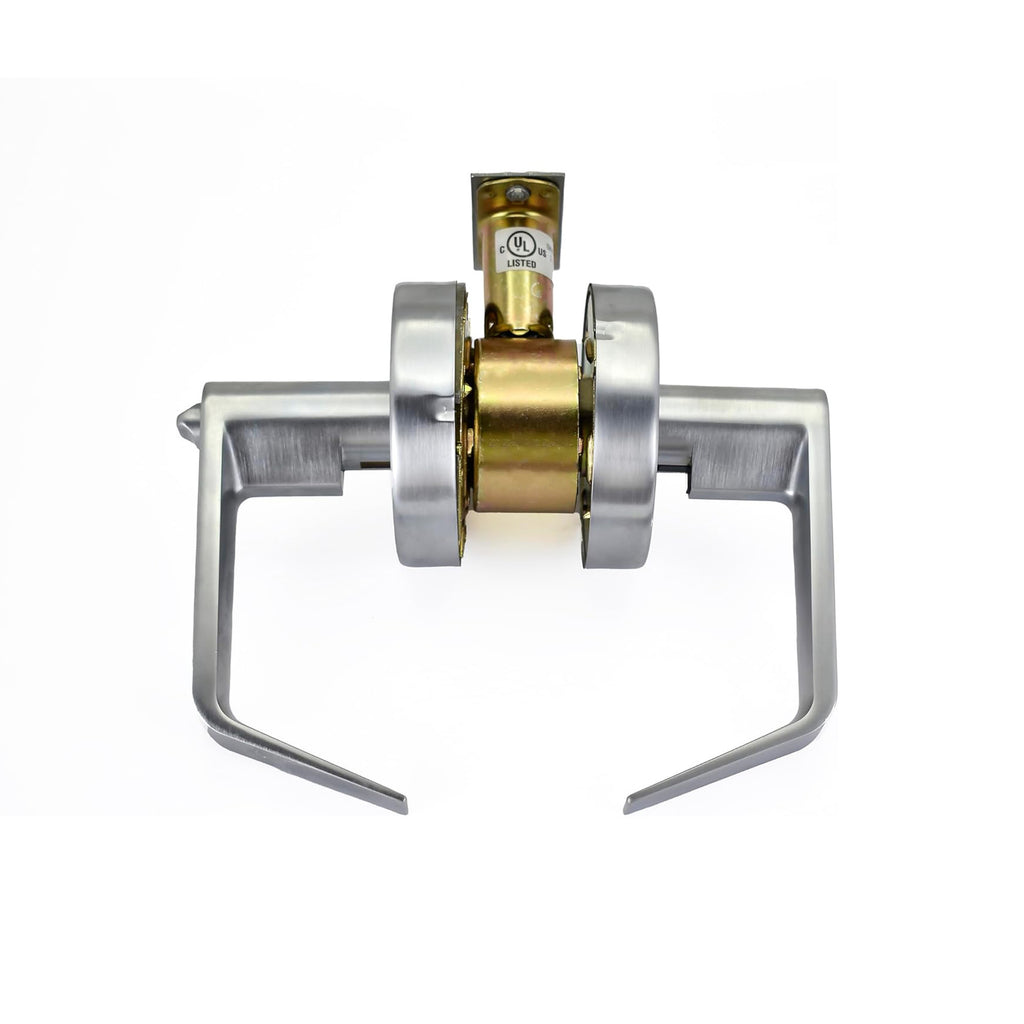

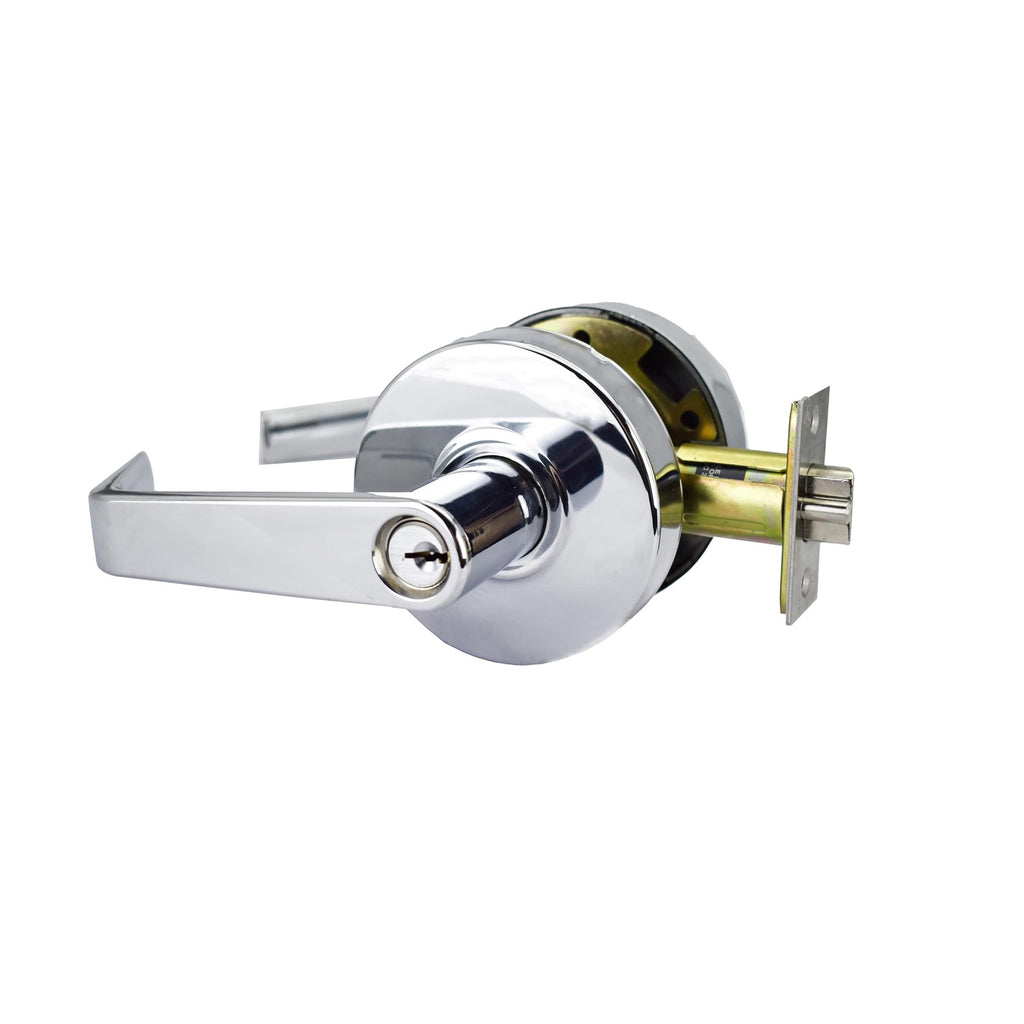

Grade 2 Commercial Door Lock Leverset- Entry Function

Grade 2 Commercial Door Lock Leverset- Entry Function

Regular price $65.00 USD
Regular price Sale price $65.00 USD
Sale Sold out
Shipping calculated at checkout.

GRADE 2 COMMERCIAL DOOR LOCK ENTRY FUNCTION LEVERSET  REVERSIBLE

  • Auto release function
  • Protection sleeve design
  • Concealed mounting screws
  • Reversible or non-handed design

Certification:

  • ANSI A156.2 Grade 2 certificated
  • UL 3 hours fire rating certificated

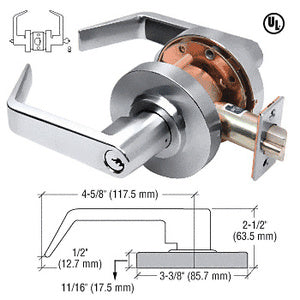

Specifications:

  • Exposed Trim: Stainless steel. Pressure cast zinc lever.

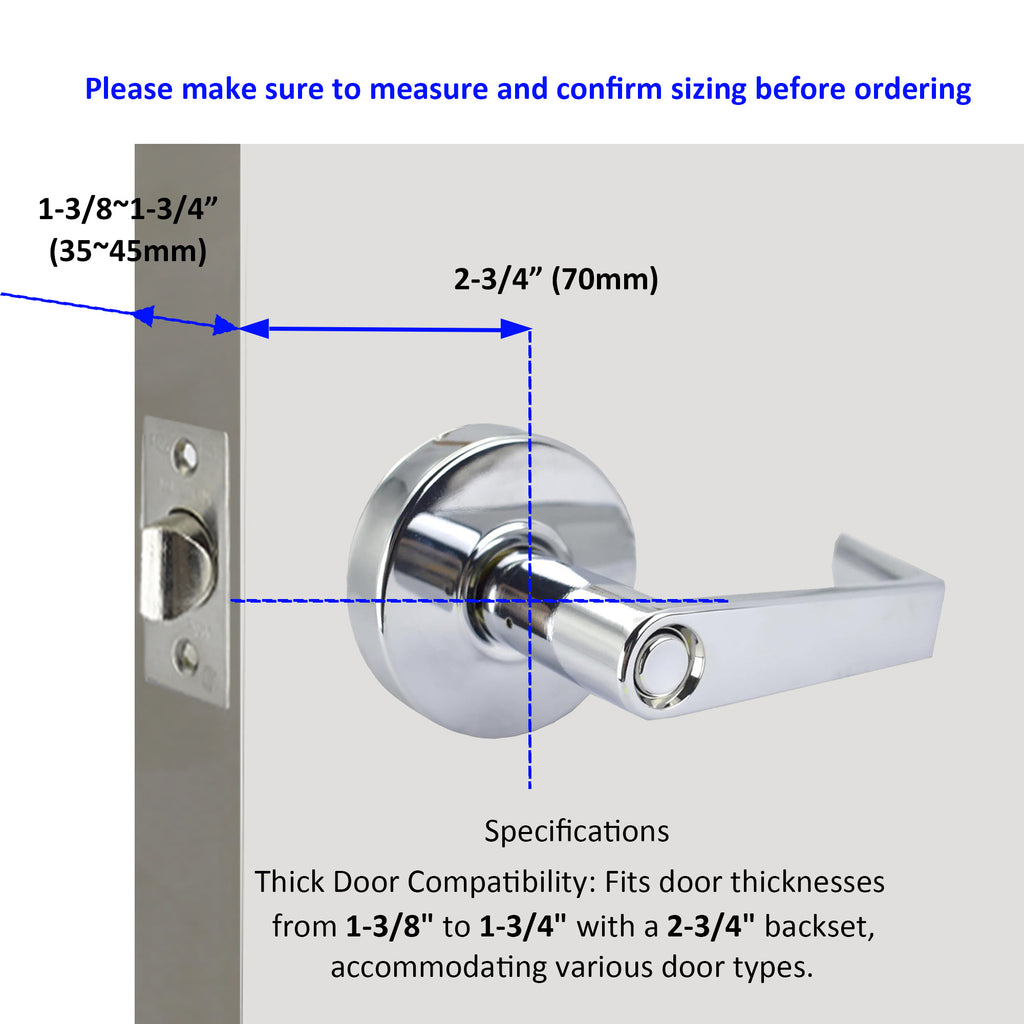

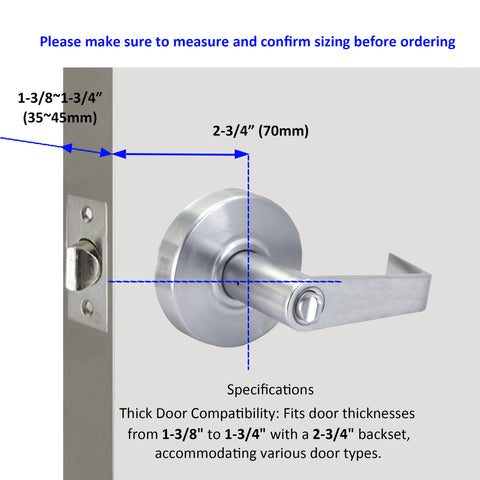

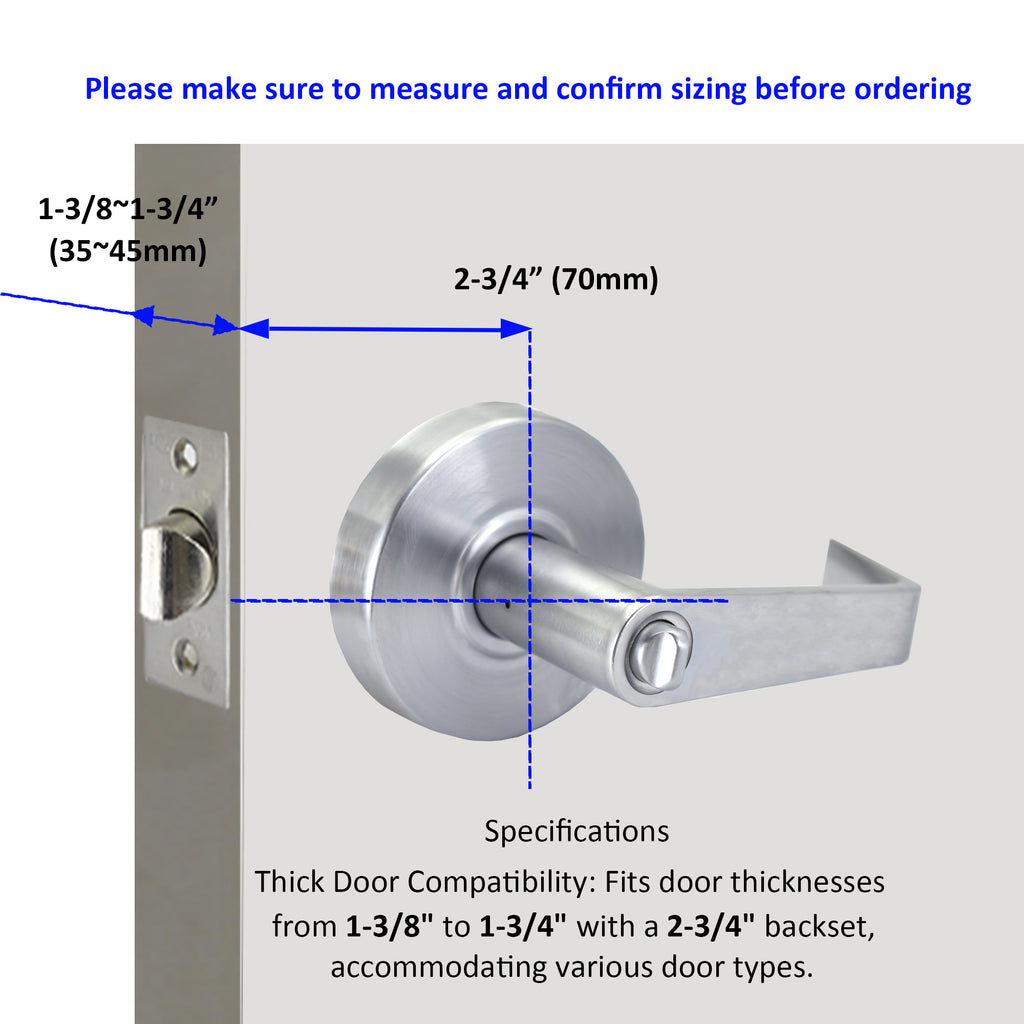

  • Door thickness: 1-3/8" to 1-3/4" (35-45mm) standard.
  • Backset: Fit both 2-3/8" or 2-3/4"(60mm or 70mm)
  • Latch: 2-3/4"(70mm) and 2-3/8"(60mm) standard. 6-Way latch is also available.
  • Latch bolt: Stainless steel powder metallurgy latch bolt with 1/2" (12.7mm) throw.
  • Cylinder: 6 pin solid brass cylinder. Schlage "C" keyway standard. Small Format Interchangeable Core cylinder is also available.( 6/7 pin cylinder, Best"F" keyway)
  • Door Handling: Reversible lever on non-handed design suitable for both right and left hand door

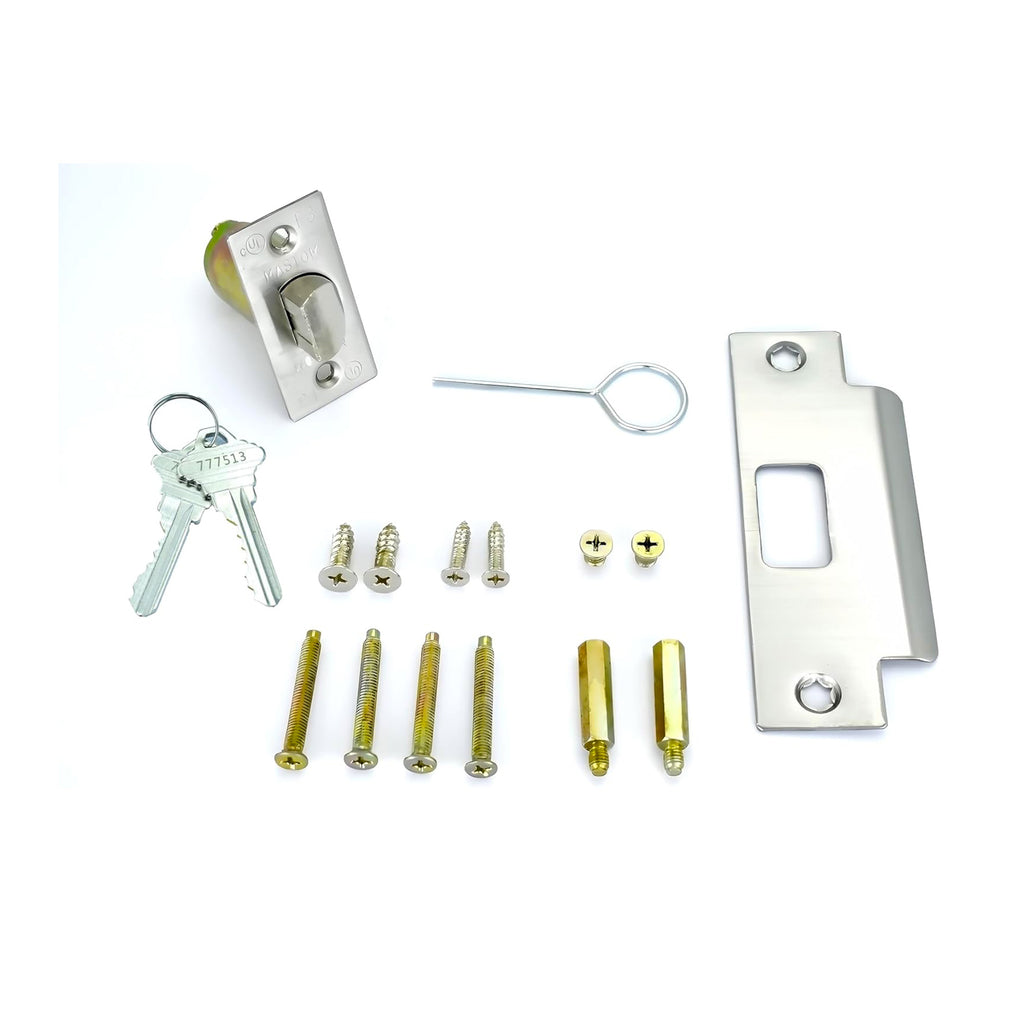

Included:

  • Grade 2 entry function leverset
  • Latch
  • Latch bolt
  • Faceplate
  • Strike
  • 6 pin cylinder
  • Installation screws
